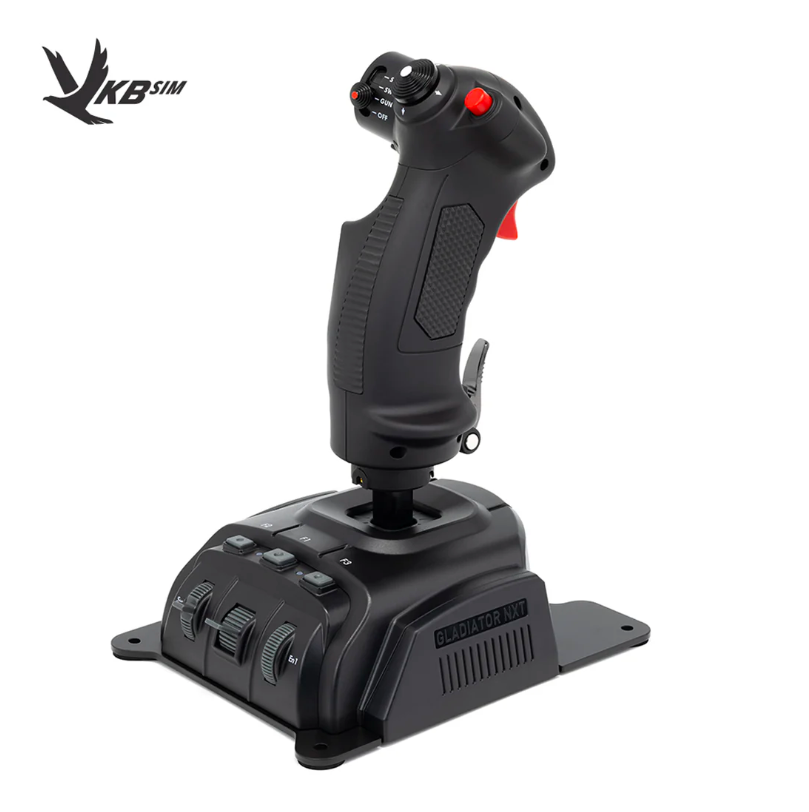

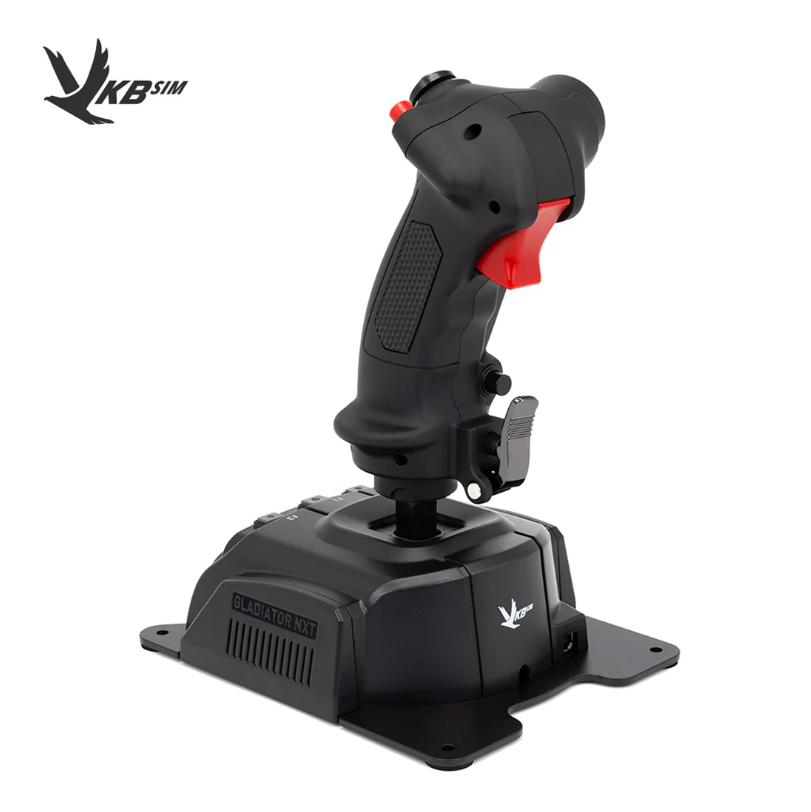

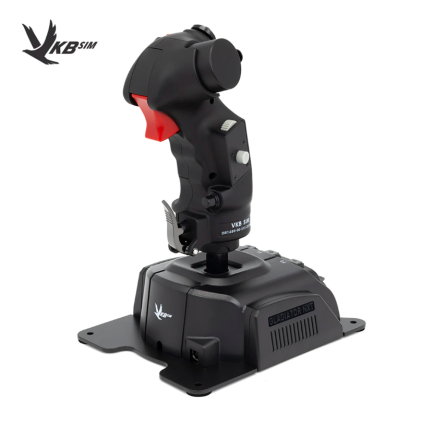

Gladiator NXT EVO ‘F-14 Combat Edition’

Gladiator NXT EVO ‘F-14 Combat Edition’

Ships With

• 1x GNX F-14 Grip
• 1x GNX EVO Base

Optionally Available

Desk Mounts:

• Looking for desk mounts for your Gladiator? Check our Gladiator Stand-Alone UCM Mount.

F-14 Combat Grip Features

• 1 Rudder axis (lockable)
• 1 DLC (Direct Lift Control) axis
• 1 Hat Switch with a push button
• 1 Dual-stage trigger
• 1 Four-stage ammo selector with safety lock and push button
• 4 Programmable buttons

General F-14 Grip Specifications

Our F-14 Combat Grip series is designed for precision and durability.

• High-Quality Buttons: Features buttons with long travel and a soft-click feel, enhancing tactile feedback during critical maneuvers.
• Materials: Metal construction for the ammo switch, hat switch, and Emergency Autopilot Disable trigger ensures lasting durability.
• Modularity: User-replaceable buttons with a modular hat design allow for easy customization and maintenance.
• Advanced Technology: Incorporates contactless sensor technology for the ammo switch and a spring-loaded DLC (Direct Lift Control) maneuver wheel for precise control.
• Responsive Control: Equipped with a dual-stage trigger featuring a cam mechanism for nuanced input.
• Electronics: Powered by a 32-bit ARM controller, providing high-speed and precise control operations.
• Ergonomics: Constructed with industrial-grade ABS and integrated rubber inserts for a secure, non-slip grip.
• Twist: Features a built-in, lockable twist adapter for additional rotational control; includes a hex key and screw to lock the twist adapter in place.

Gladiator NXT EVO Base

The Gladiator NXT EVO Base is designed for precision and versatility:

• Precision Control: Equipped with 2 contactless MaRS sensors for accurate X and Y axes movement.
• Functionality: Includes an auto-centering 3-position switch, a throttle wheel, and a rotary encoder.
• Customization: Features 3 programmable buttons and 2 programmable single-color LEDs for visual feedback.
• Durability and Comfort: Smooth gimbal with ball bearings and an adjustable dry clutch to fine-tune the resistance.
• Stability: Comes with a tabletop steel baseplate with non-slip rubber pads.
• Flexibility: Includes soft (#10), medium (#20 default), and strong (#30) springs, a spring extractor tool for easy changes, and a complete set of screws and a screwdriver.
• Connectivity: Includes a 180 cm (6′) USB cable and a cable holder tool for UCM Desk Mount compatibility.

General Gladiator NXT EVO Joystick Specifications

• Each Gladiator NXT EVO joystick features a durable industrial-grade ABS base and grip with a gimbal made from strong glass-fiber-reinforced PA material, ensuring robust performance.
• It features a stable steel baseplate with non-slip rubber pads for firm placement. Equipped with high-quality ALPS buttons (Japan OEM) and precise, contactless MaRS sensors, the joystick offers lasting performance and accurate control.
• Dual 32-bit ARM controllers in both the base and grip enable efficient operation, while firmware updates and profile preferences are easily managed via USB, thanks to its onboard memory.

Video Guides

• Gladiator NXT EVO Quick Start Guide – 2024
• F-14 grip calibration (from the selected timestamp)

Warranty

• 2 Years
